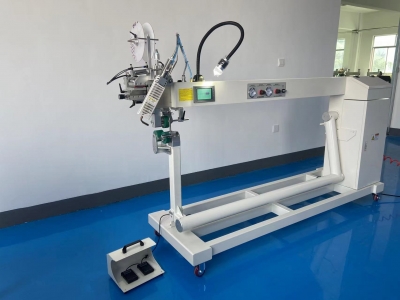

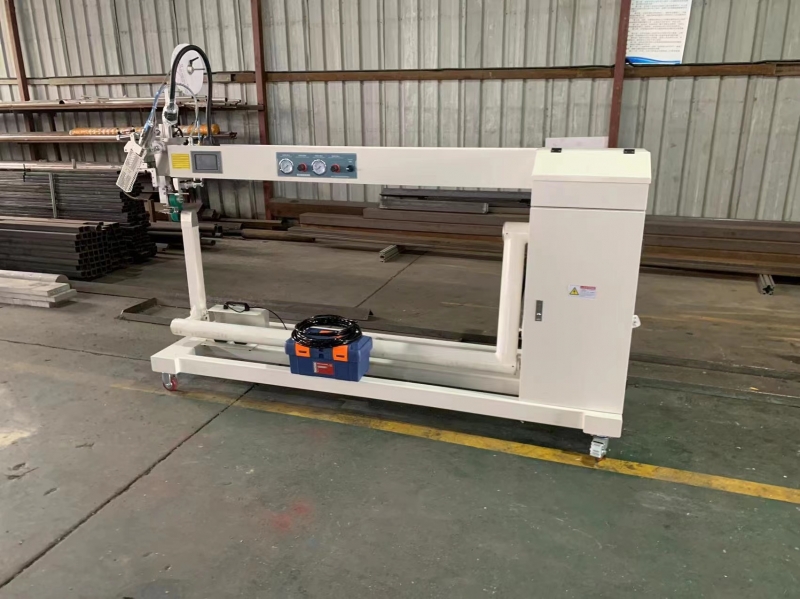

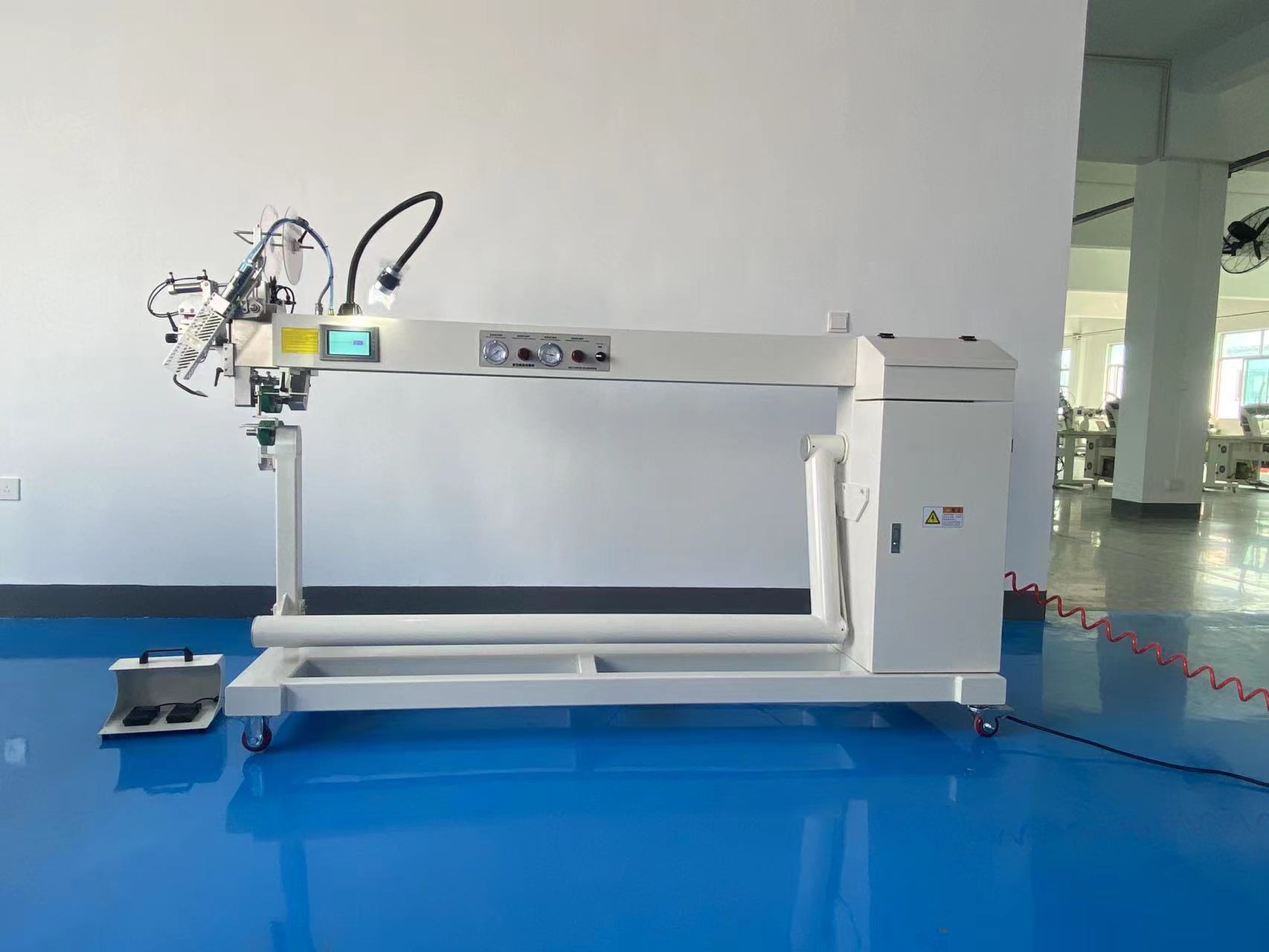

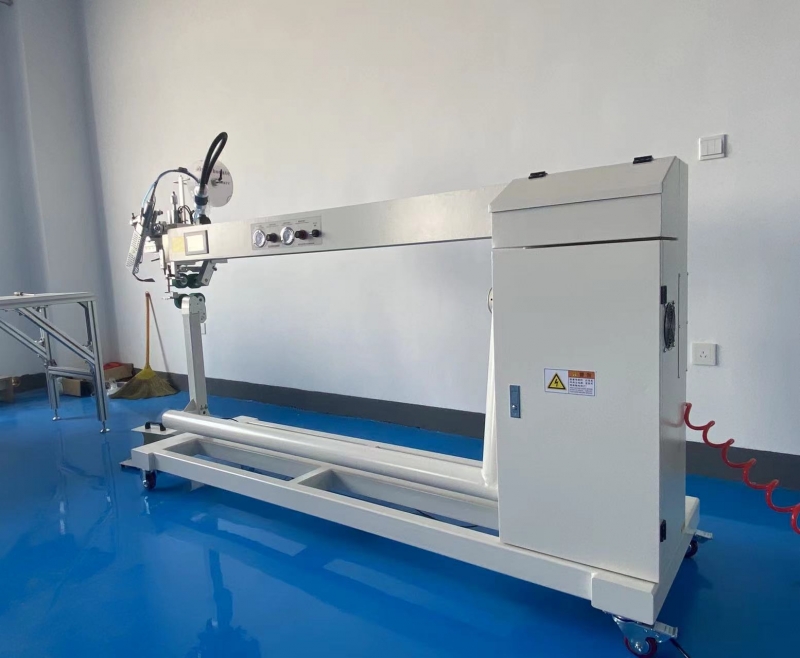

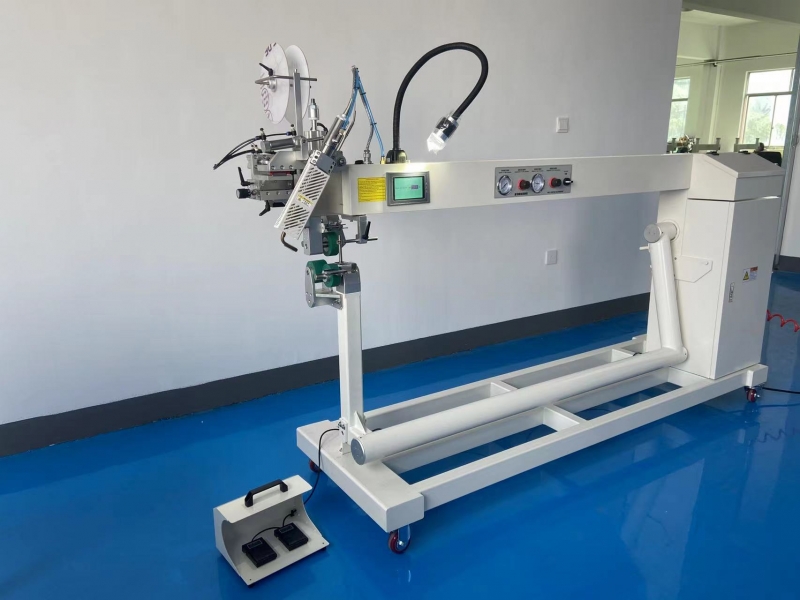

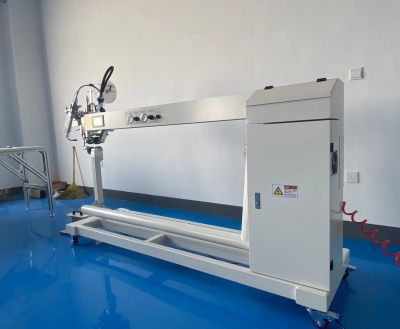

A12L model Lengthened hot air PVC welding machine for outdoor inflatable products

Model:CH-A12L
Voltage:AC220V/50Hz
Output power:3500W
Heat control:Up to 750°C
Working speed:1-24m/min
Pressure:0.35-0.6Mpa
Roller width:20mm,30mm,40mm,50mm
Roller width:75mm
Machine dimension:2000 x 700 x 1600mm
Net Weight:300 Kg
Inquiry

Product Description


Introduction

Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TPU material are all available, which are made to water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc.

Purpose:
Hot air welding machine is suitable to produce all kinds of waterproof product which is made from coated PU,PVC,TPU, PE, PVA, such as large tent, inflatable boat and children toys, car covering,etc.

Suitable Material:
1.Vinyl (PVC) laminated fabric
2.Vinyl coated fabrics
3.Vinyl Films
4.Polyurethane film
5.Polypropylene coated fabric
6.Polyethylene (PE)
7.Thermoplastic rubber (TPR) film
8.Thermoplastic rubber fabrics
9.Nonwoven polyester
10.Various fusing tapes
11.Weldable webbings
12.Rigid extruded products
