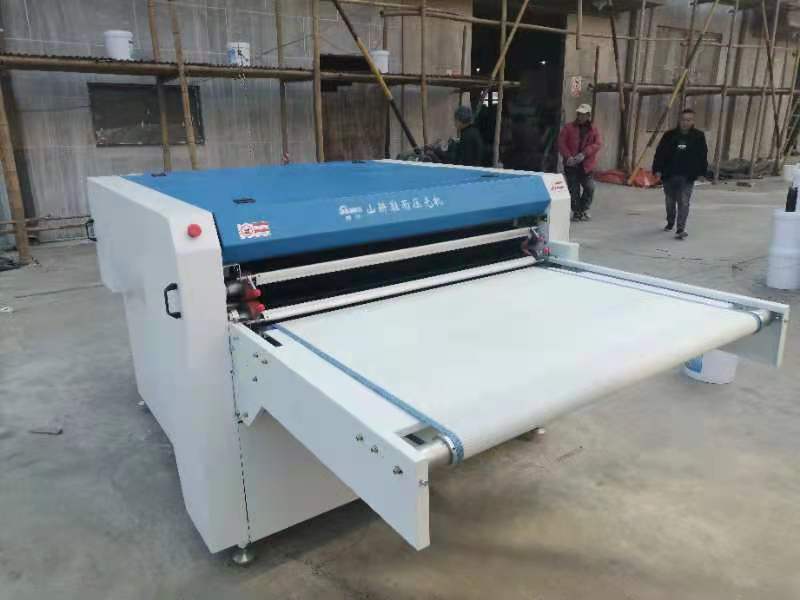

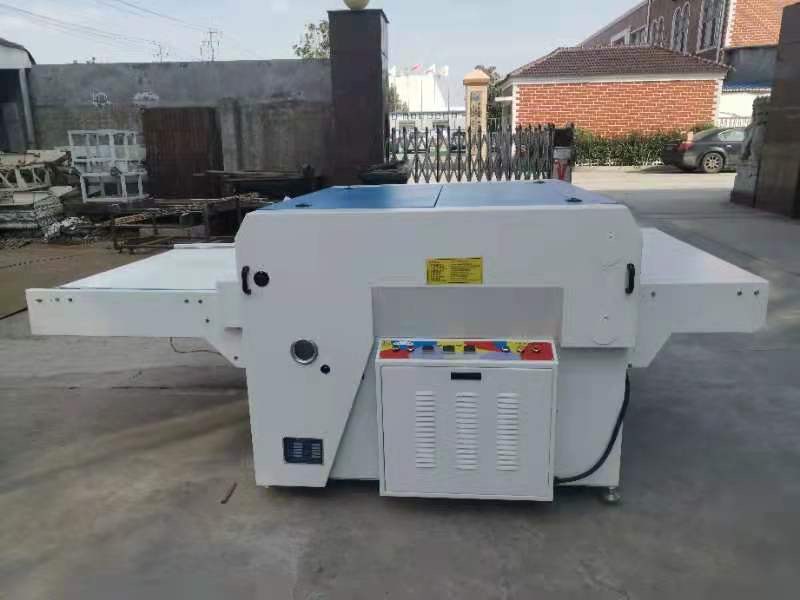

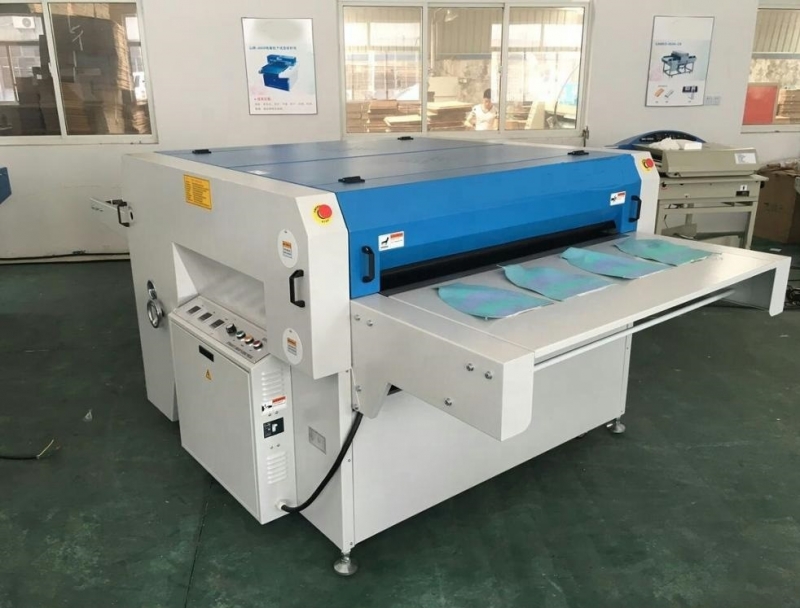

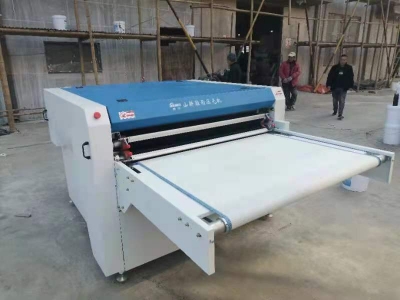

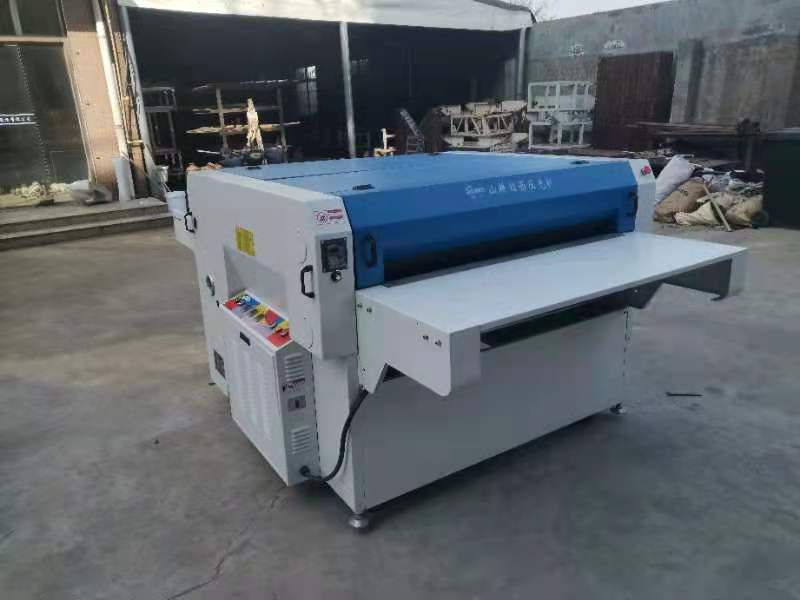

CH-F900 Fusing press machine

Model:CH-F900
Voltage:AC380V/50Hz
Output power:1200W
Fusing width:900 mm
Fusing speed:0-20 m/min
Fusing tempreture:0-200℃
Machine size:1400 x 1500 x 1300mm
Net weight:350Kg
Inquiry

Product Description

Specification:    Scope of application:

For the Garments Industry,shrinkage, drying, Automobile interior decoration Industry,Luggage industry,calendering and shaping of 3D uppers, water-soluble laces, flat machine collars, lower blues, creped fabrics, elastic bands, webbings, etc., and for the bonding of plain weaves and knitted panels.

Performance characteristics:
1. Automatic cooling device: equipped with timed automatic cooling stop switch system
2, The heating temperature is uniform: the professional device intelligently controls the temperature difference to the minimum, the heating zone temperature difference is not more than ± 5 ° C
3, Unlimited object length: continuous bonding, calendering stereotypes are not subject to object length
4. Automatic belt correction: equipped with imported micro-motion omron switch to eliminate belt deviation and ensure belt service life.
5, Cooling and fast setting: equipped with 3200 rpm fan and mesh belt conveyor system, cooling speed, fabric bonding and shaping effect is good
6. The pressure of the rubber roller is stable: the pressure is even within the width of the tape, and the diameter of the upper and lower rubber shaft is 100MM.
7. Stable heating system: composed of up and down nine aluminum plates
8, the speed is flexible and adjustable: install the inverter to adjust the speed

Heating system (optional)

Heating method: mica sheet / electric heating tube

Up and down pressure roller increases the diameter of 100-200mm

Up and down pressure roller adjustable from 50mm

The heating plate is controlled by the thermostat to control three parts, and different temperatures can be set.
