| Model: | CH-15KW-T |
| Output power: | 16KW |
| Input voltage: | AC380V / 3 Phases |
| Max input: | 15KVA |
| Platen size: | 400 x 800 mm |
| Drive mode: | Pneumatic |
| Oscillating tube: | 8T85RB |
| Spark protector: | NL5557 |
| Oscillation frequency: | 27.12 MHz |
| Max output current: | 2.1A |
| Machine size: | 2010 x 1250 x 1910 mm |
| Machine weight: | 800 Kg |
| Inquiry |
Product Description

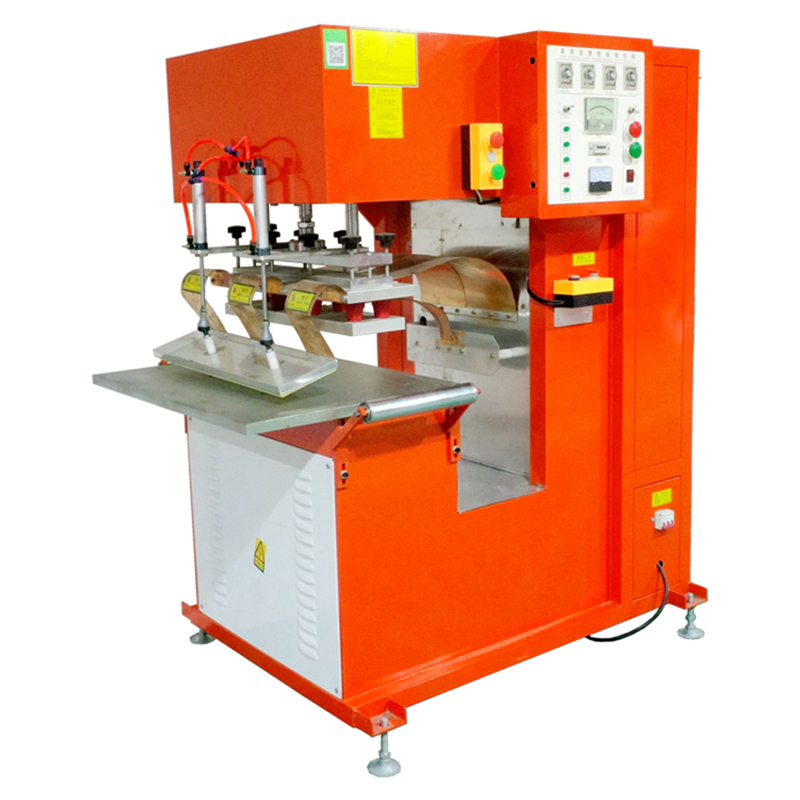

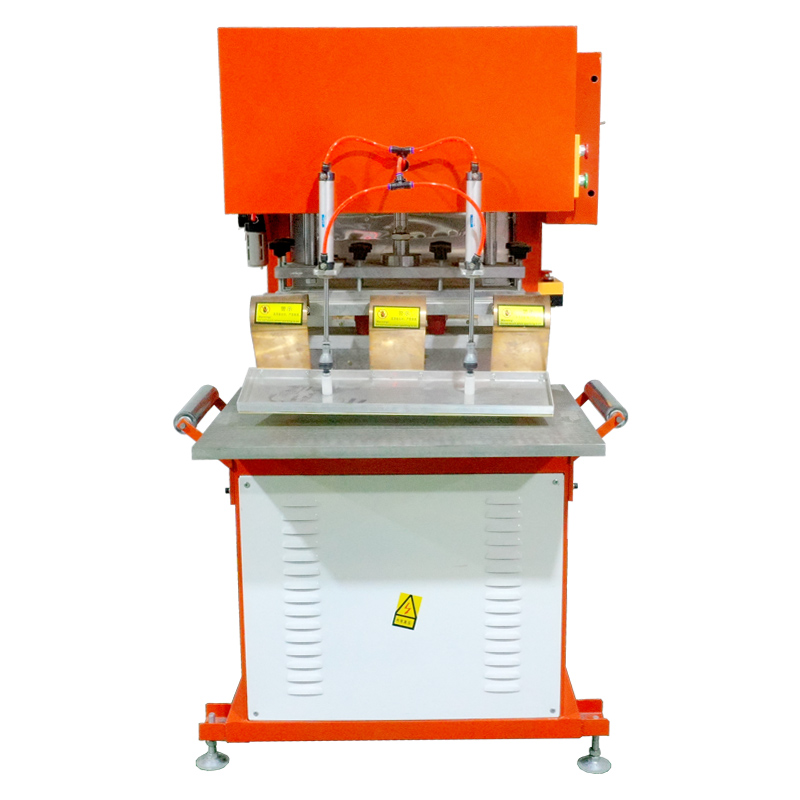

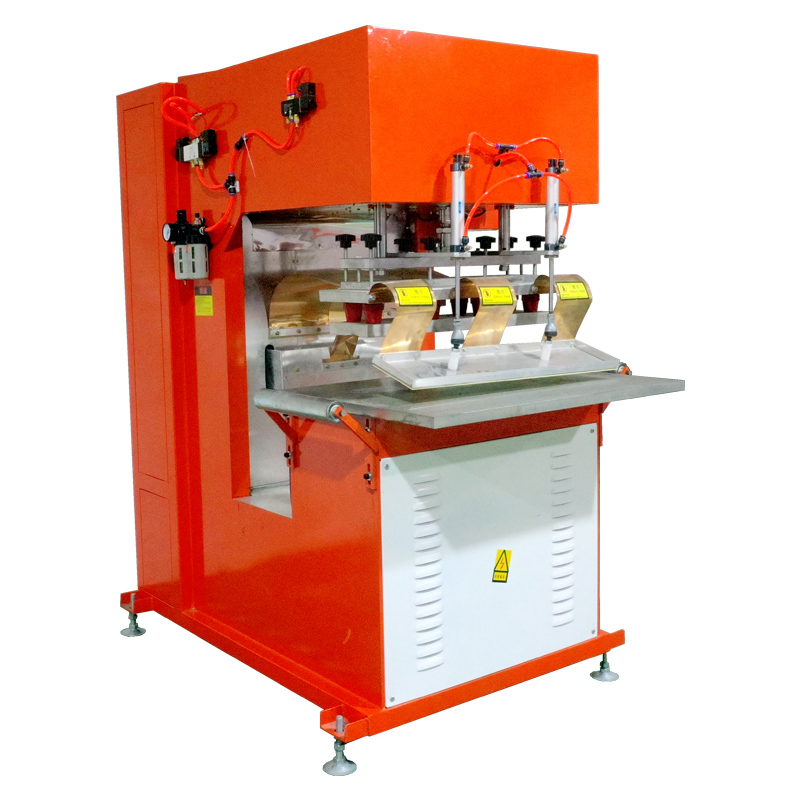

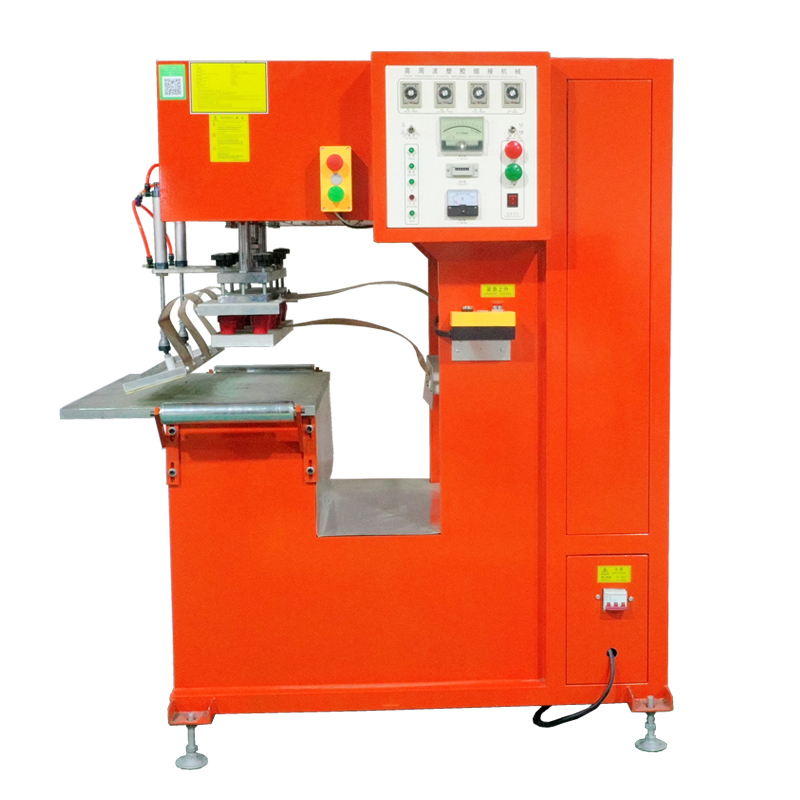

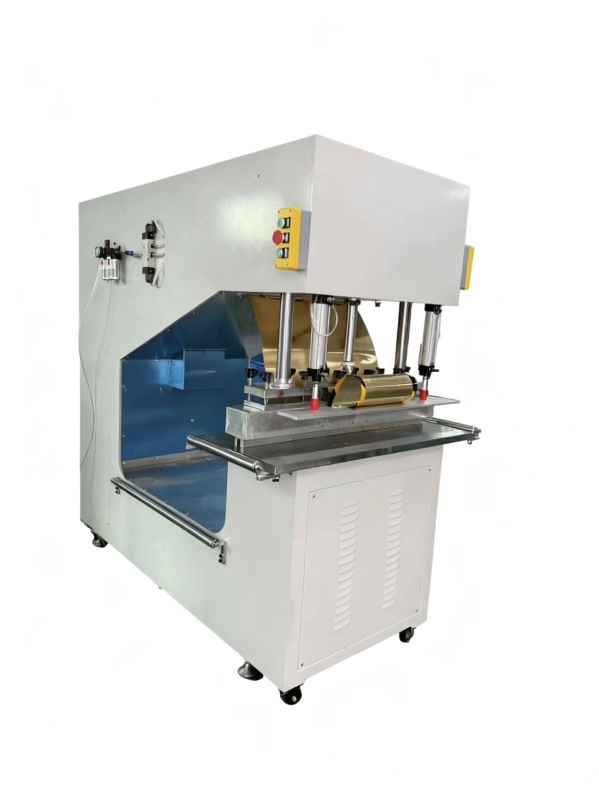

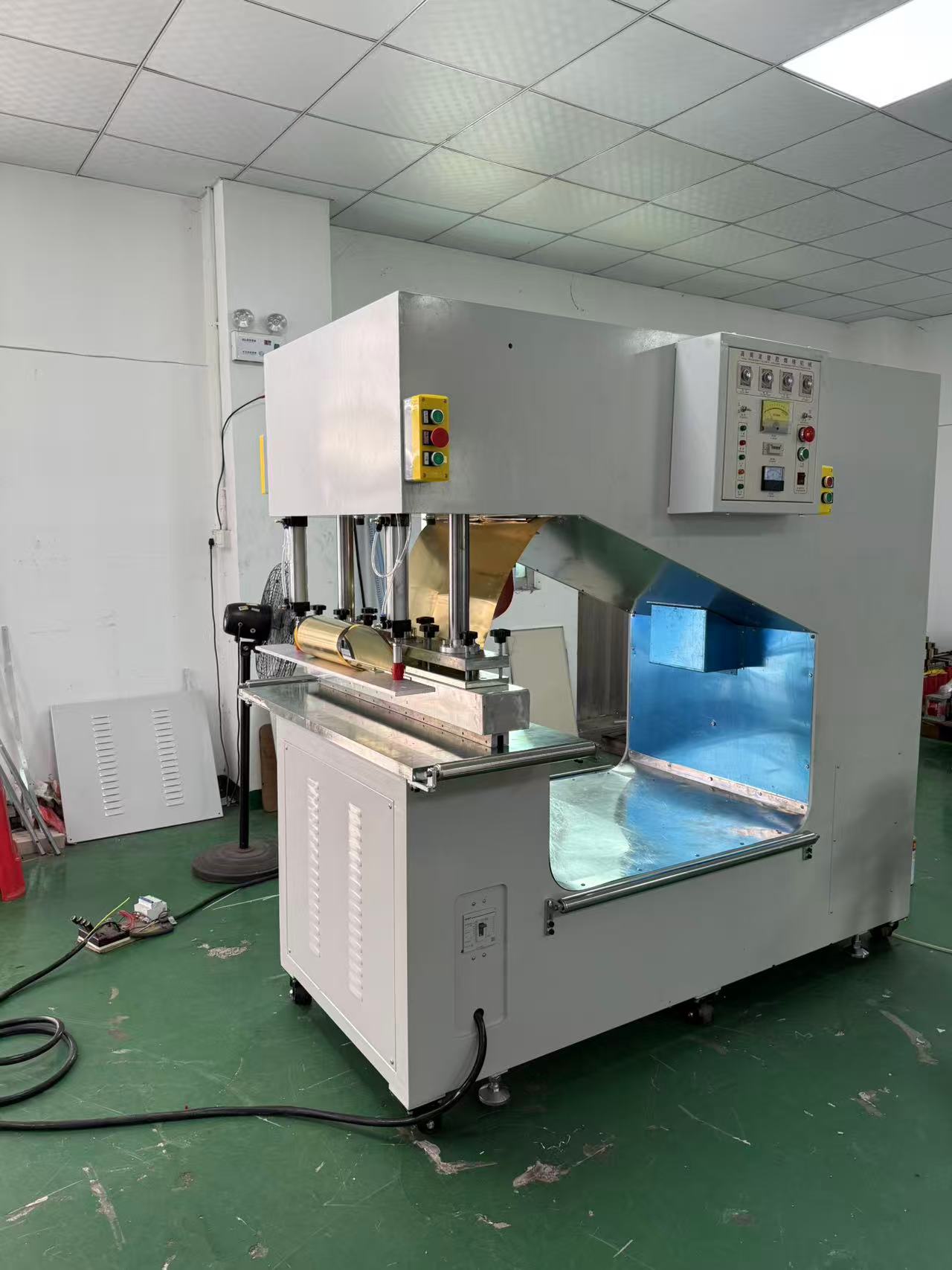

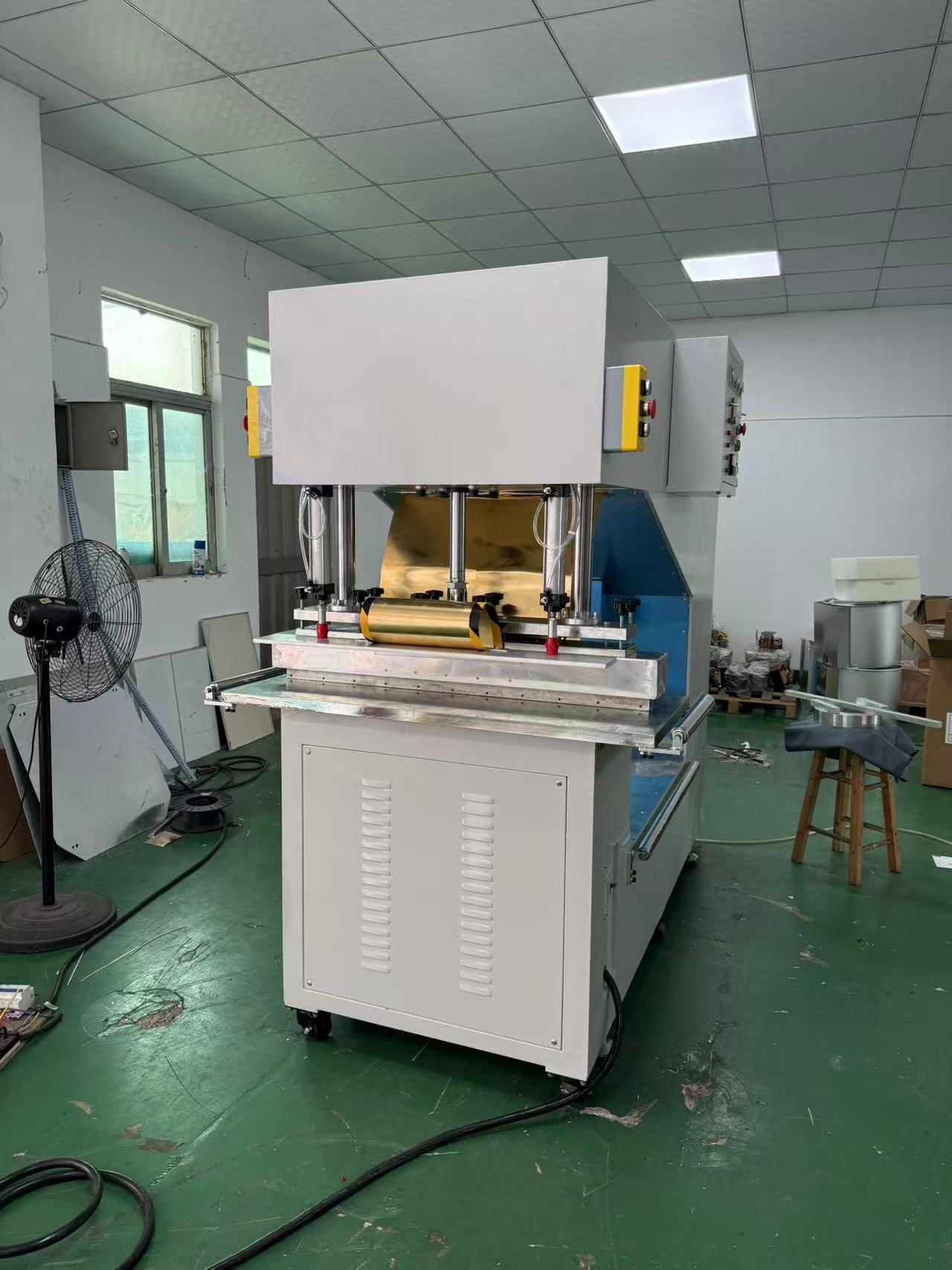

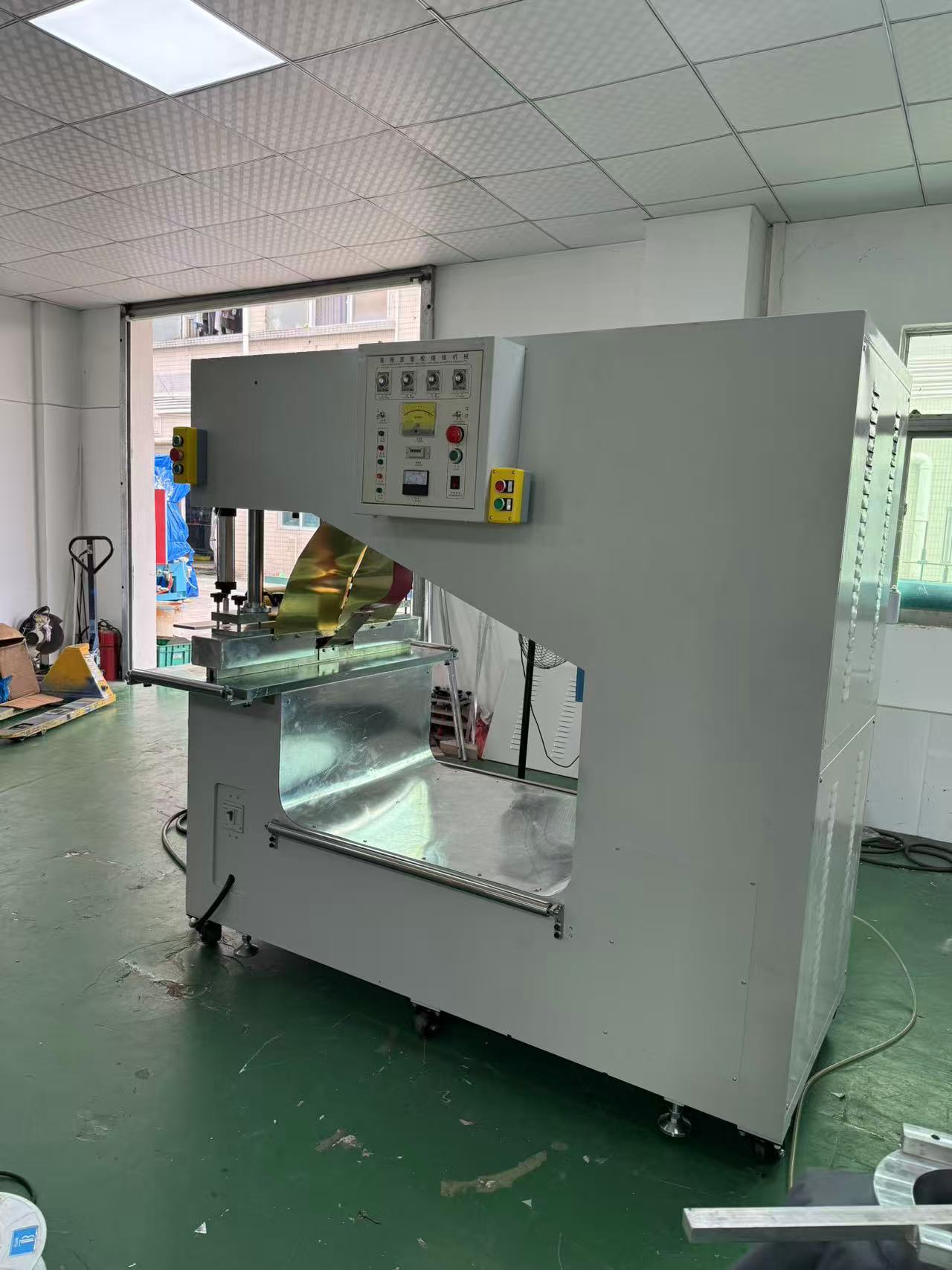

CH-15KW is the typical High Frequency Welding Machine which is designed and made
for making Tents ,Military Tents , Military Cover , Tensile Membrane Construction and
many application related to tarpaulin or PVC &PU coated fabric.
Main Application :Applied for Inflatable Tent , tarpaulin, sunshade,canvas,painting canvas,
film curtain and relatives for automatic stepping welding and connecting.
Packaging & Shipping
Packaing :STANDARD EXPORT PACKAGING (PLYWOOD CASE,NO FUMIGATION NEEDED)
Delivery Time : TWO WEEKS AFTER ORDER CONFIRMED
