Model: | CH-60 |
Voltage: | AC220V/50Hz |
Output power: | 2000W |
Frequency: | 20KHz |
Working speed: | 1-20m/min |
Working pressure: | 0.35-0.6Mpa |
Machine size: | 1300 x 650 x 1500mm |
Net weight: | 130Kg |
Inquiry |

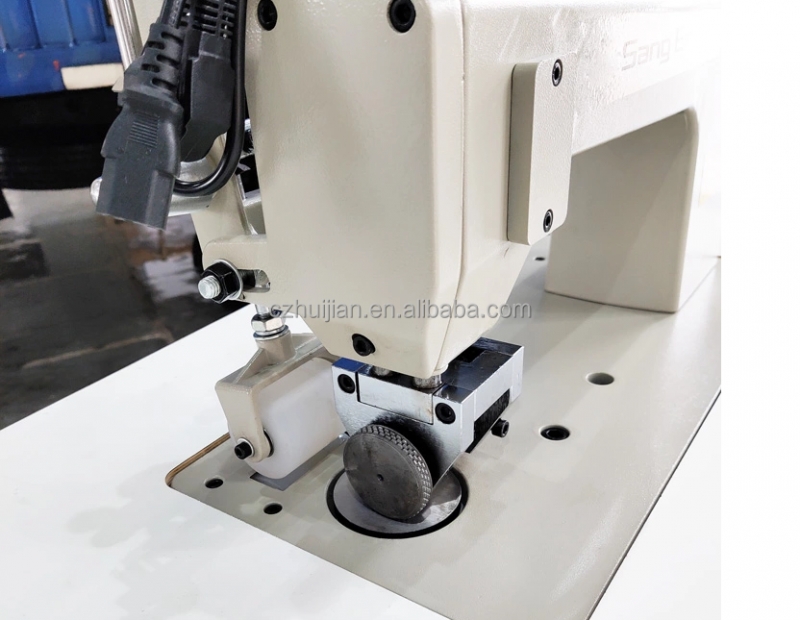

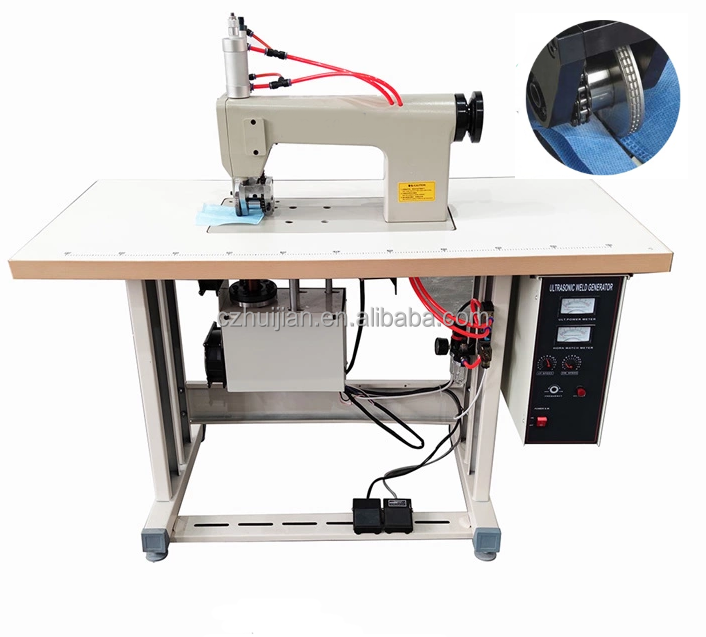

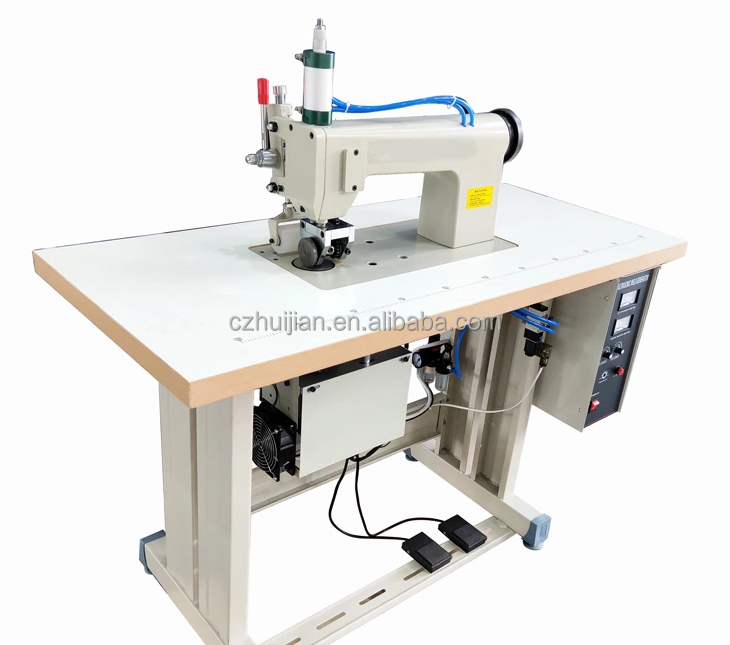

Brief introduction of ultrasonic sewing machine for non-woven cloth

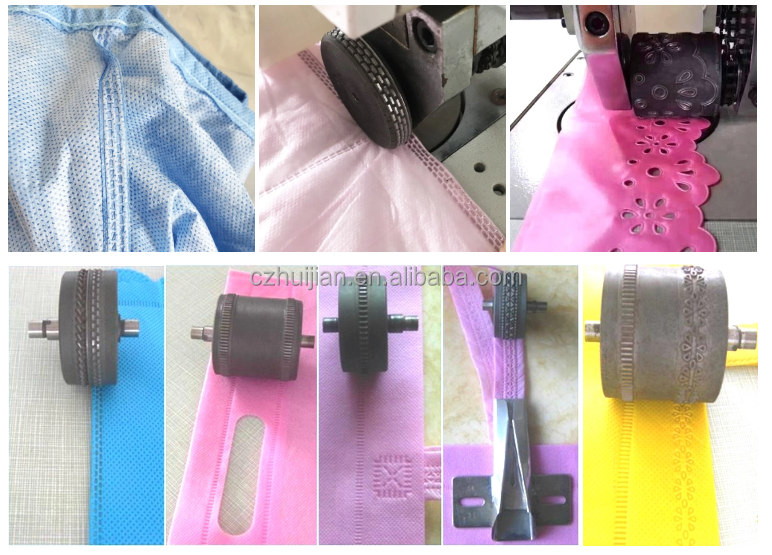

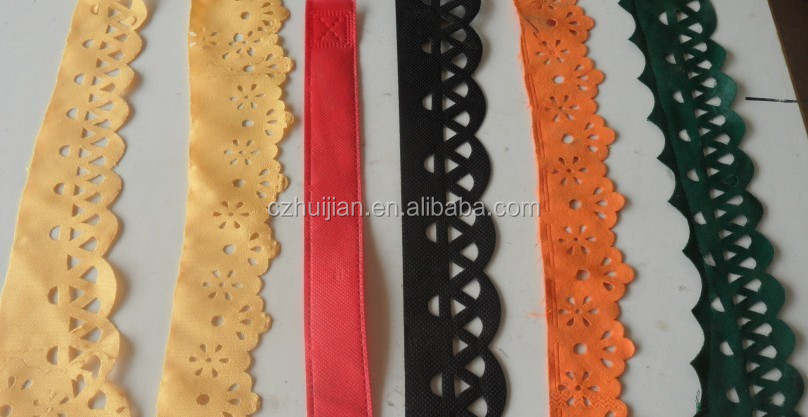

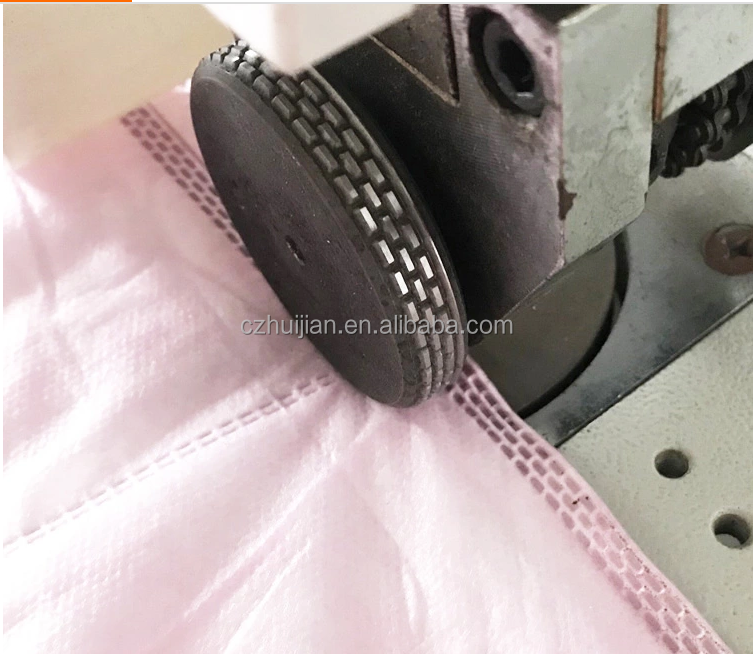

This machine can make vairous pattern by ultrasonic sealing and pressing, It can be widely used in garment,toy,food,non-woven,bags,face mask,non-woven products industry.The machine can sealing,pattern edge,cutting,trimming,suppress graphics,hole making,striping,color printing,folding etc.
1.No needles and thread, to save costs and avoid the trouble of breakage line;
2.human nature and ergonomic design, easy to operate;
3.Welding lines and curves can be processed;
4.Compliance with the requirements of watertight, airtight, anti-virus (bacteria);

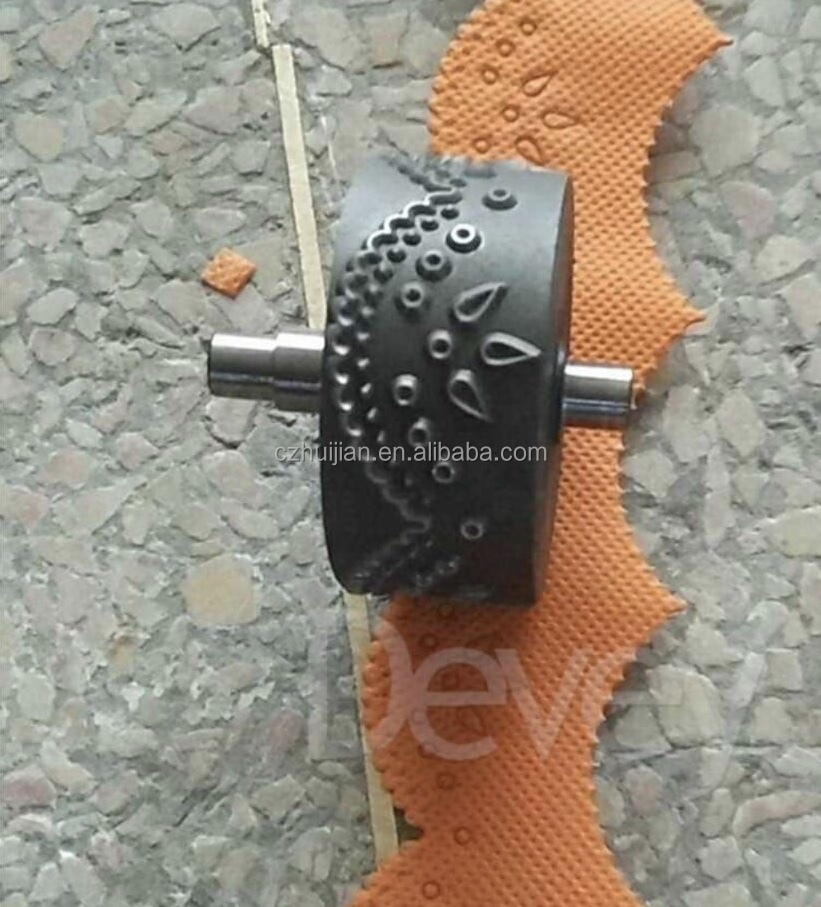

5.floral whorl by graphic design, enhancing the strength and beauty of the processed goods;
6.controlled welding width, increase productivity;
7.The special equipment with molten arm design for better welding sleeve, which is the first device for seamless garment.
