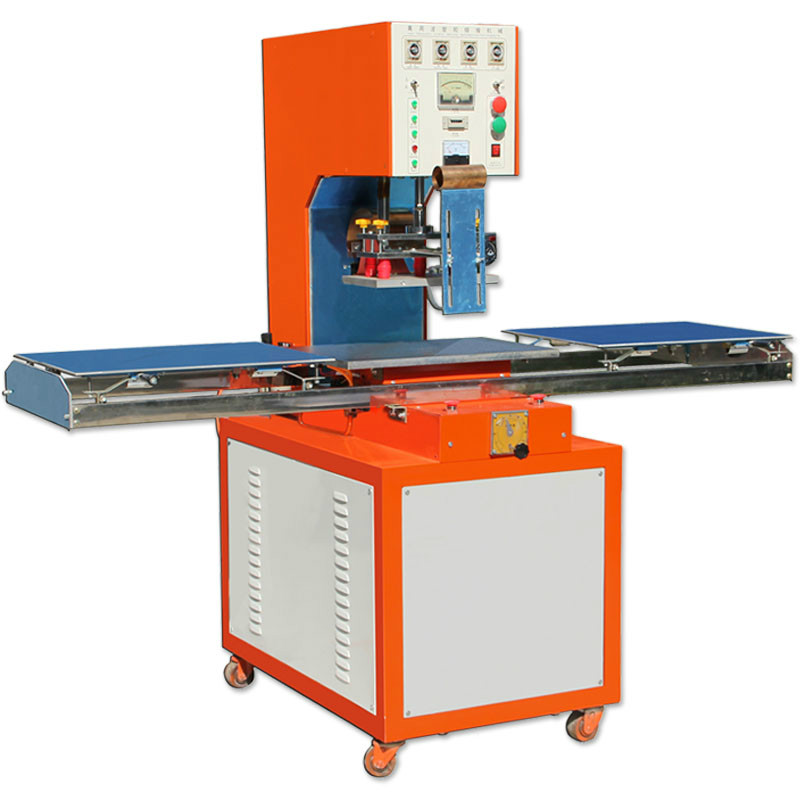

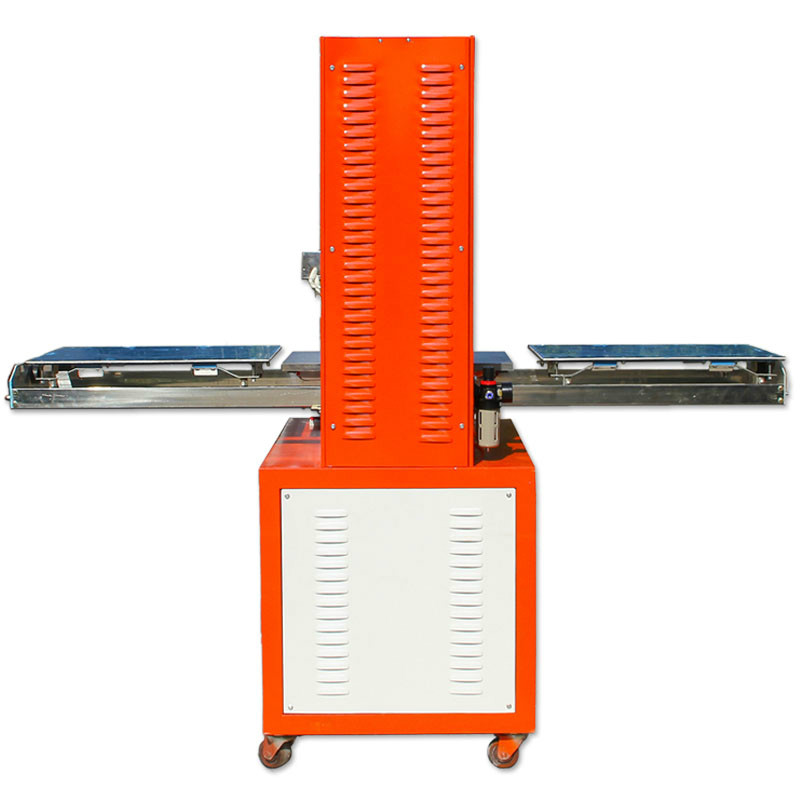

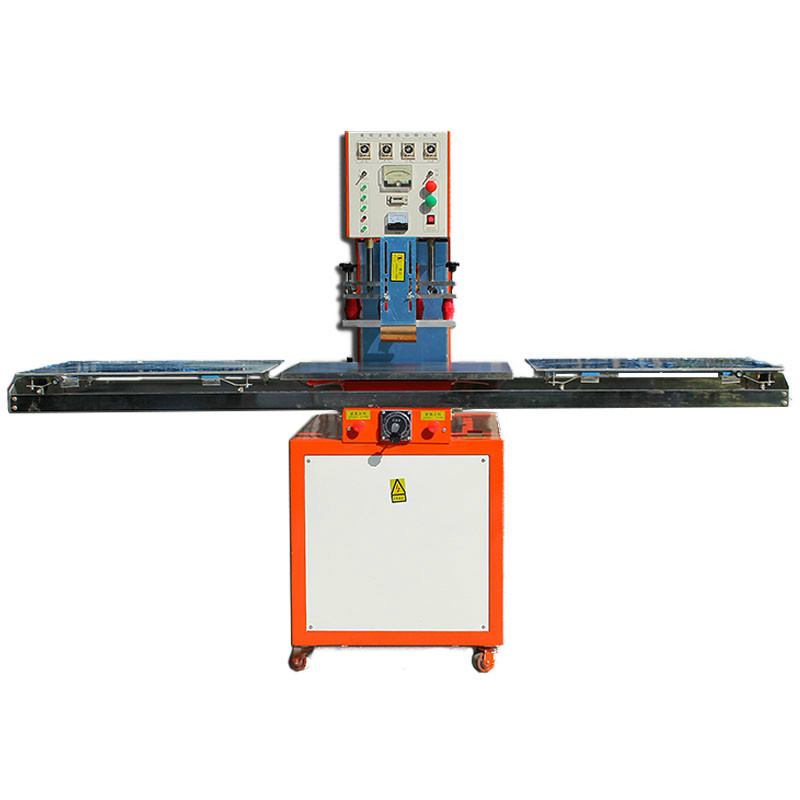

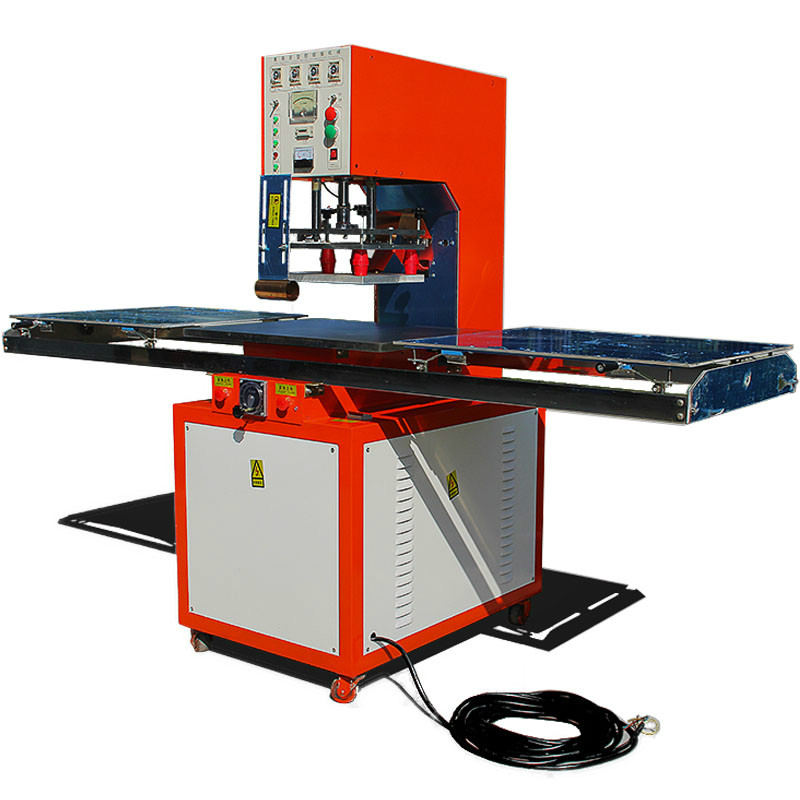

5KW Single head sliding high frequency welding machine

Model:CH-5KW-S
Voltage:AC380V/50Hz
Output power:5000W
Frequency:27.12MHz
Oscillation tube:7T85RB
Spark system:2D21
Gap of electrode:250 mm
Upper polar plate:250 x 380 mm
Lower polar plate:400 x 600mm
Moving distance of machine:200 mm
Machine size:1000 x 800 x 1850 mm
Net weight:350Kg
Inquiry

Product Description

Features and Functions:

1, Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect mould and material
2, Jamming prevention device
High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc
3, Safety device
When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.
4, Easy tuning and special protection circuit
The selectable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.
5, Easily adjustable tuner
High frequency welding machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.
6, Adjustment for the distance on the machine head
High frequency welding machine adjust the distance on the machine head if practical as the mould's size and height are different. Save working load while processing accuracy can reach to 98%.



Application range:

High frequency welding machine for Shoes upper, trademark, Sticker, raincoat, Umbrella, leather bag, Hand bad, beach bag, Stationery, nameplate, Air-stuffing toy, waterbed, leather products and PVC products.
